Reinforced Graphite Sheet

Product Description

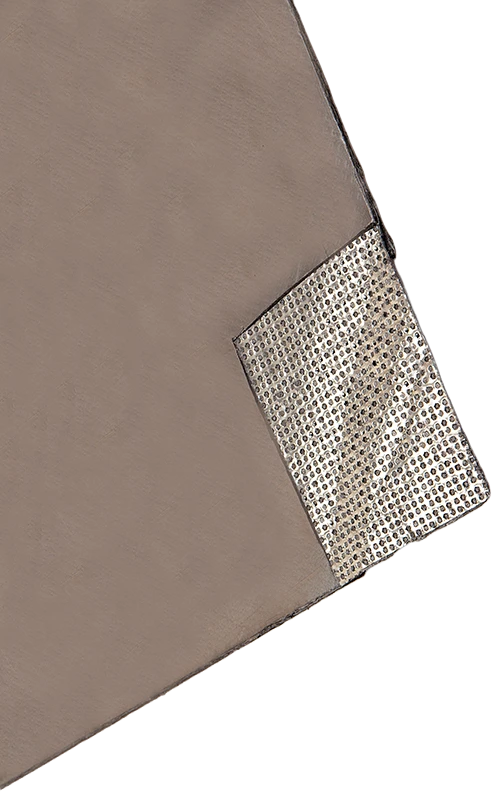

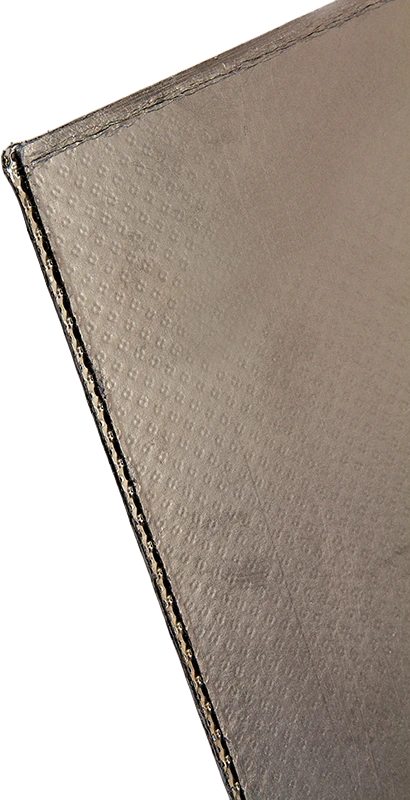

Reinforced Graphite Sheet is manufactured from pure flexible graphite sheets reinforced with metallic material. As reinforcement material between the sheet, one or two layers of stainless perforated sheet, stainless foil, stainless braided wire, or carbon steel perforated sheet are used, and both sides of the sheet are coated with pure graphite sheet. The graphite layers and reinforcement materials are bonded to each other mechanically or with adhesive.

show more...

Application Areas

Reinforced Graphite Sheets are an ideal gasket material for fluid sealing in most industries. It is recommended to use this material in refineries, chemical and petrochemical plants, paper mills, mining, and other industrial areas.

show more...

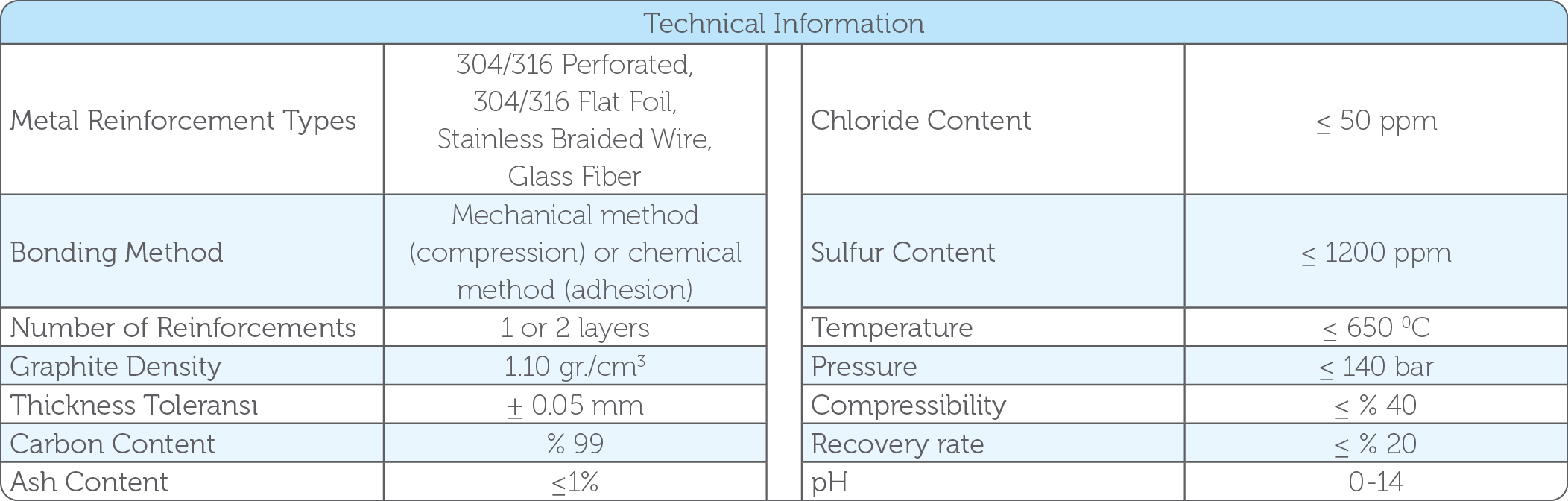

Technical Details

  • High carbon content (Min. 99%)

  • Ease of cutting

  • Operating temperature (Max. 650 °C)

  • Good resistance to chemicals and corrosion

show more...

Reinforcement Materials

  • Perforated Stainless Steel

  • Non-Adhesive Perforated Stainless Steel

  • Stainless Steel Foil

  • Braided Wire

  • Glass Fiber

  • Tinned Perforated Sheet

show more...
